SKU IC555 Category

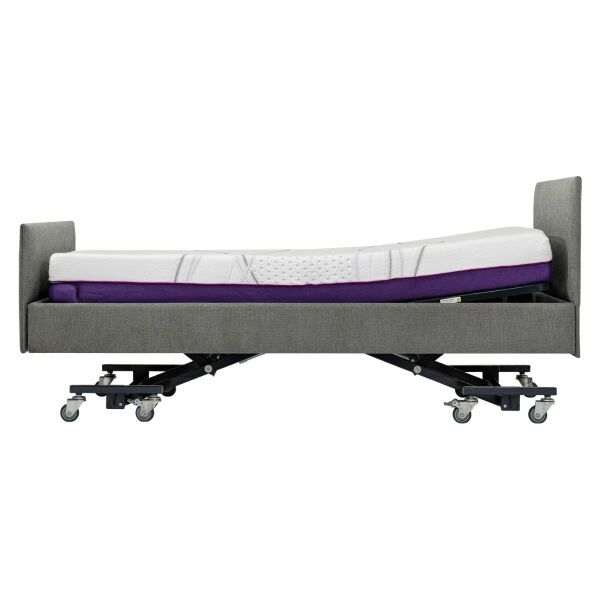

IC555 Bariatric Bed

Overview:

The IC555 Model is our premium bed in the Original range. This is a Bariatric Bed model with extra features including vascular support and the option of vinyl or fabric.

Warranty

IC555 Bariatric Bed
Icare Medical Group warrants the IC555 Height Adjustable Bed and parts to the Customer against defective materials and defective workmanship, from date of invoice.

  • Steel Frame of Bed – 10 Year Limited Warranty
  • Actuators – 2 Year Limited Warranty
  • Control Box – 2 Year Limited Warranty
  • Castor wheels – 2 Year Limited Warranty
  • Hand Piece – 2 Year Limited Warranty
  • Upholstered Surround and Fabric – 2 Year Limited Warranty

More information

Colors between imagery and actual product may vary, due to manufacturing variations.

Codes & Sizes

King Single

2030 x 1070

IC555KS – King Single

Fabrics

  • Premium Fabric: Bison (Vinyl)
  • Premium Fabric: Mist
  • Premium Fabric: Noir
  • Premium Fabric: Royal (Discontinued)
  • Premium Fabric: Sand (Vinyl)
  • Premium Fabric: Slate (Vinyl)
  • Onyx
  • Silver
  • Smoke
  • Stone
  • Vinyl Dove
  • Vinyl Ebony

Key Features

  • 10 Year Warranty
  • Available with Headboards and Footboards
  • Backlit Wipeable Hand Piece
  • End and Corner Mattress Retainer Bars
  • External Rechargeable Battery Back-up
  • 300kg Safe Working Load
  • Lockable Heavy Duty Castors
  • Optimised for Carers
  • Strong Breathable Mattress Platform
  • Vascular Support Manual Adjustment

Specifications

  • Safe working load – 300kg safe working load. Includes any Icare mattress.
  • Hand Piece – Backlit for night time use. Easy press buttons. Wired stretch cord. Hook attachment for hanging to side of bed. Wipeable.
  • Mattress Surface – Strong metal mesh under mattress allowing increased airflow.
  • Actuators 1x 6000 newton, 24 watt head adjust actuator. 1x 6000 newton, 24 watt knee adjust actuator. 2x 8000 newton, 24 watt height adjust actuators. No pull motors for added safety.
  • Wheels – 8x heavy duty swivel castors with one lockable castor on each corner
  • Head lift angle 62º Knee break angle 42º
  • Max height – 66cm from floor to top of mattress platform. Min height – 32cm from floor to top of mattress platform.

Key Functions

  • Head Lift / Back Raise
  • Hi-Lo Height Adjustable
  • Knee Break
  • Trendelenburg & Reverse Trendelenburg
